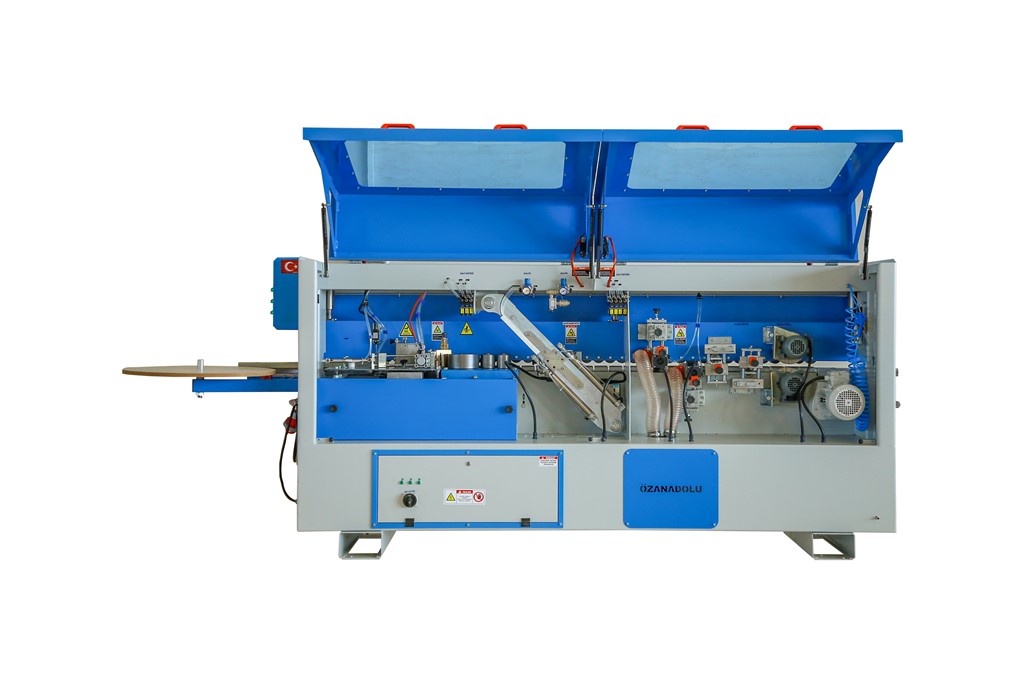

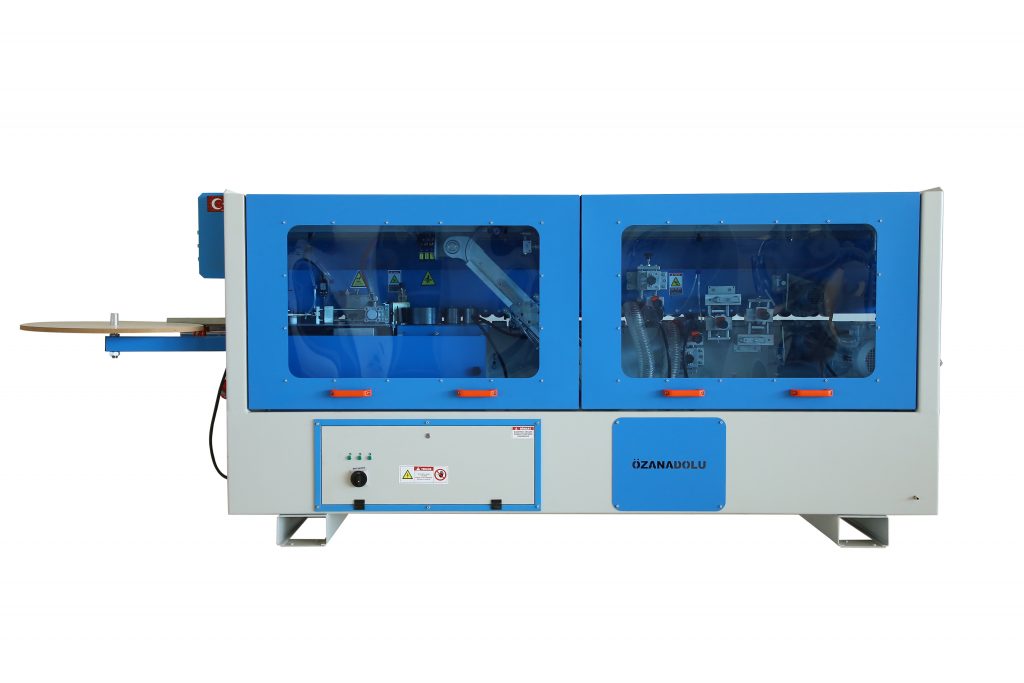

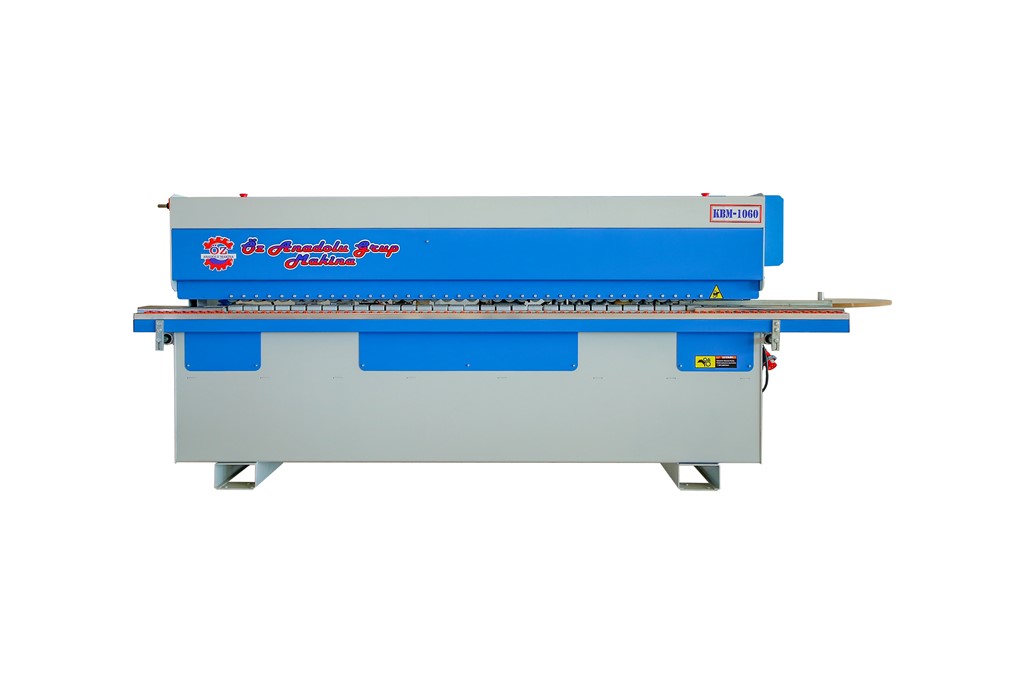

KBM 1060
| TECHNICIAL SPECIFICATIONS | |
|---|---|
| Glue Warm Up Time | 30 Minute |
| Crimping Thickness | 0,40 x 32mm |
| Working Speed (min.) | 10 Meter |
| Electrical Power | 5.5-6.5 kW |
| Glue Boiler Volume | 3,5 kg |
| Scraping Thickness | 0,40 x 1 mm |
| Milling Cleaning | 0,40 x 3 mm |
| DIMENSIONS | |
|---|---|
| Size | 3200 mm |
| Width | 750 mm |
| Height | 1430 mm |
| Weight (circa) | 900 kg |
| POWER | TRANSFER | FREQUENCY | VOLTAGE | |
|---|---|---|---|---|
| HEATER | 2.5 kW | - | - | 380 V |
| HEAD END CUT | 0.74 kW | 12000 d/min. | 200 hz | 220 V |
| MILLING UNIT | 1.1 kW | 12000 d/min. | 300 hz | 220 V |
| FAN | 0.75 kW | 2850 d/min. | 50/60 hz | 380 V |
| POLISHING UNIT | 0.50 kW | 2840 d/min. | 50/60 hz | 380 V |
| REDUCER | 1.1 kW | 16 d/min. | 50/60 hz | 380 V |
