| TECHNICIAL SPECIFICATIONS | |
| Glue Warm Up Time | 30 Minute |
| Crimping Thickness | 0,40 x 32mm |
| Working Speed (min.) | 10 Meter |
| Electric power | 10-11 kW |
| Glue Boiler Volume | 3,5 kg |
| Scraping Thickness | 0,40 x 1 mm |
Milling Cleaning
| 0,40 x 3 mm |
| DIMENSIONS | |
| Size | 5010 mm |
| Width | 750 mm |
| Height | 1430 mm |
| Weight (circa) | 1520 kg |
| POWER | TRANSFER | FREQUENCY | VOLTAGE |
| HEATER | 2.5 kW | - | - | 380 V |

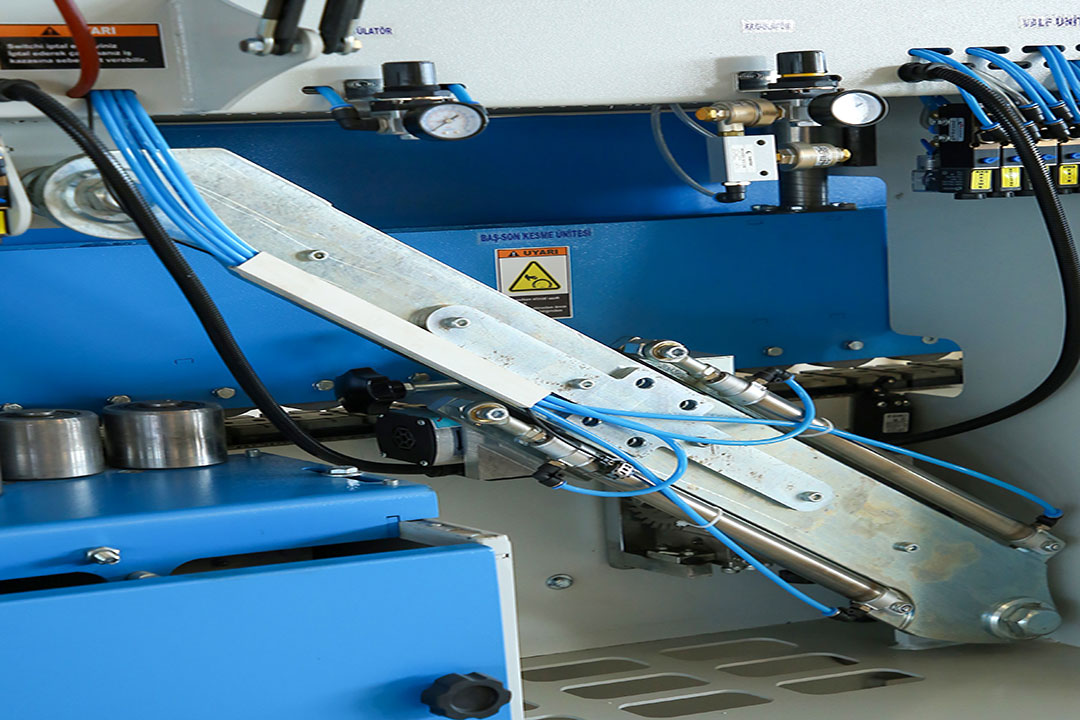

| HEAD END CUT | 0.74 kW | 12000 d/min. | 200 hz | 220 V |
| AGRİCULTURE (RADUS) | 1.1 kW | 12000 d/min. | 300 hz | 220 V |

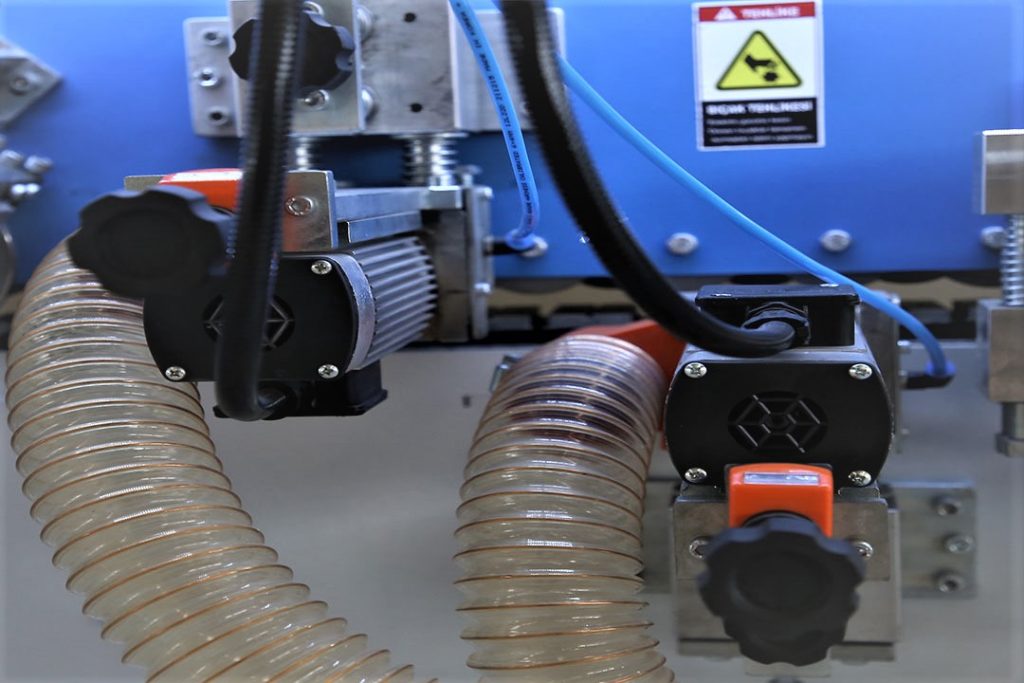

| MILLING UNIT | 1.1 kW | 12000 d/min. | 300 hz | 220 V |
| FAN | 0.75 kW | 2850 d/min. | 50/60 hz | 380 V |

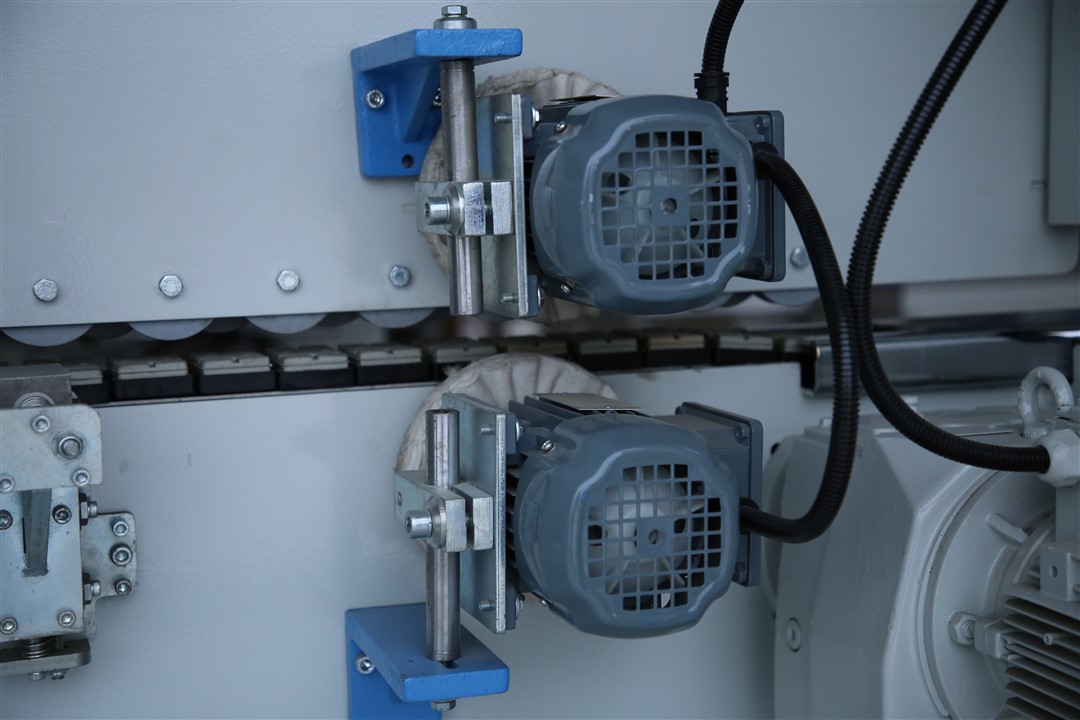

| POLISHING UNIT | 0.50 kW | 2840 d/min. | 50/60 hz | 380 V |

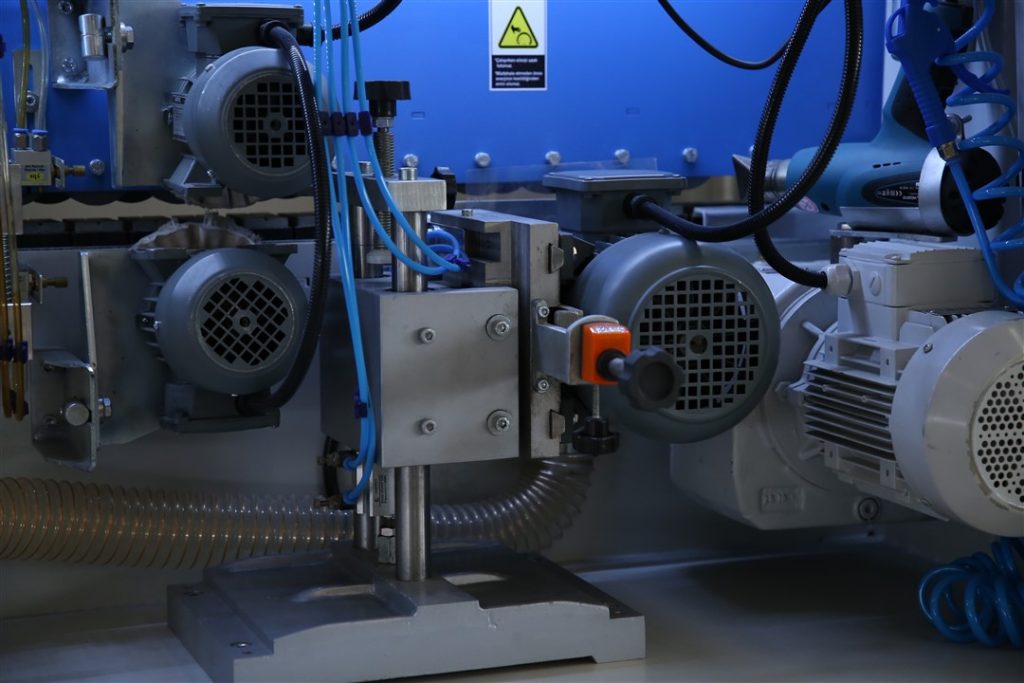

| CHANNEL OPENING | 2.2 kW | 2850 d/min. | 50/60 hz | 380 V |
| REDUCER | 2.2 kW | 16 d/min. | 50/60 hz | 380 V |
UNITS
